In addition, it has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.

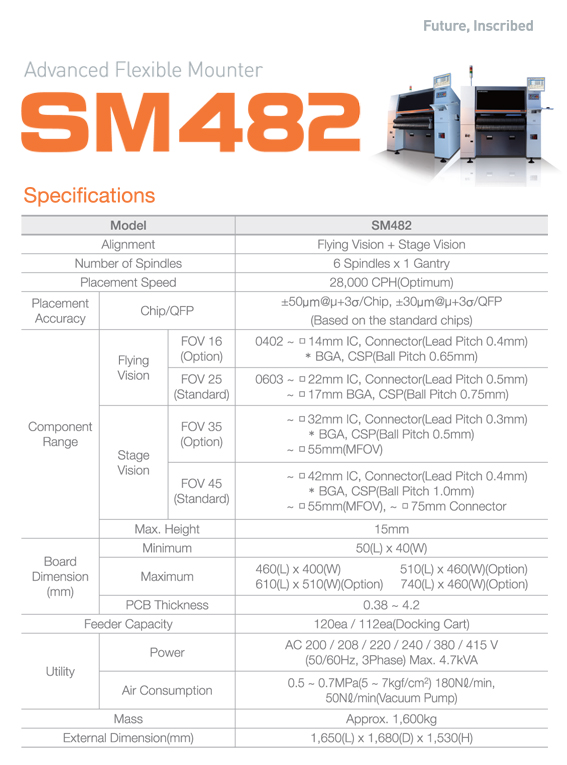

▶ 28,000 CPH(Optimum)
▶ 1 Gantry x 6 Spindles/Head
▶ Applicable part: 00603 ~ □42mm(H 15mm), 0402(Option)
~L75mm Connector
▶ Applicable PCB: 460(L) x 400(W)(Standard)
Max. 740(L) x 460(W)(Option)
▶ High speed, high precision and electrically driven feeder
- Automatic pick-up position alignment function
- Compatible with SM pneumatic feeders
▶ New vacuum system and optimized pickup/placement motion SMART Feeder
- World’s first Auto Splicing and Auto Loading
|
